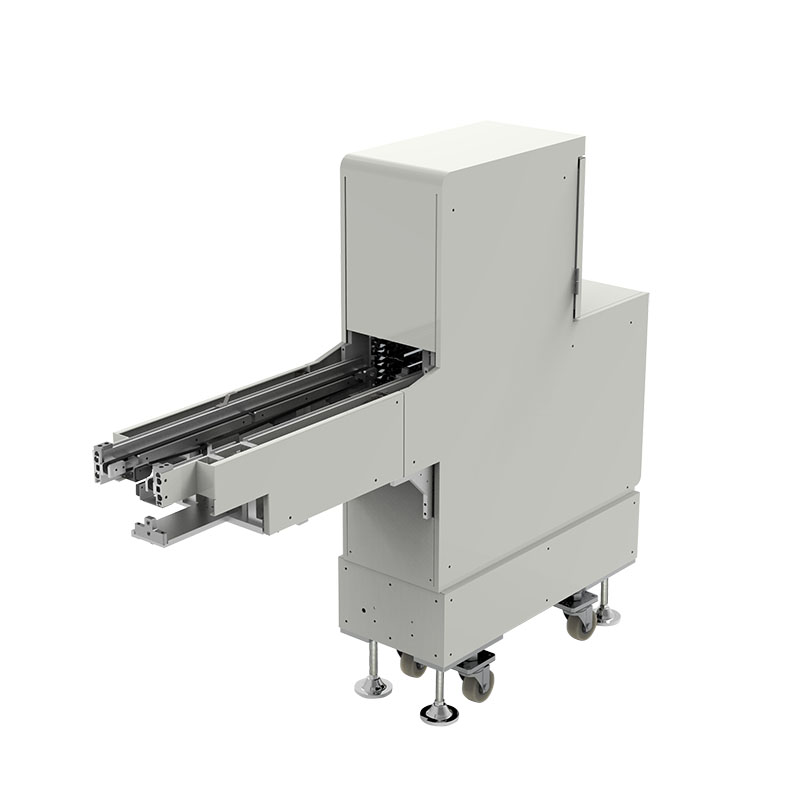

215 Tray feeder

215 Tray feeder is a feeder device designed specifically for plastic suction tray feeding. This product can be used on plug-in machines and is suitable for materials such as ICs, transformers, coils, etc. It has high economy, stability, and strong universality.

Specialties

1) The storage rack adopts a combination of motor and pneumatic feeding, with a simple structure, stable feeding, and low cost feeder.

2) The lifting mechanism has fast speed and high efficiency.

Element

Working principle: pneumatic+electric

Weight: 100Kg

Power supply: AC220V

Air source: 0.5-0.8MPa

Power: 200W

Feeder specifications

External dimensions: approximately 1420mm (L) x approximately 285mm (W) x approximately 1160mm (H)

Working height selection: 750MM/900MM

Pallet reserve layer: 10 layers

Disc change time: approximately 6s to 8s

Pickup speed: about 2S~3S/PIN

Refueling time: approximately 0.4h (80PCS per plate)

Station occupancy: 3
